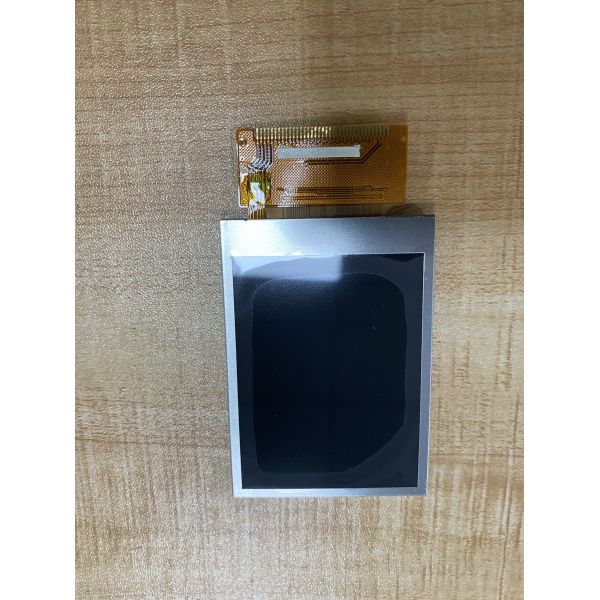

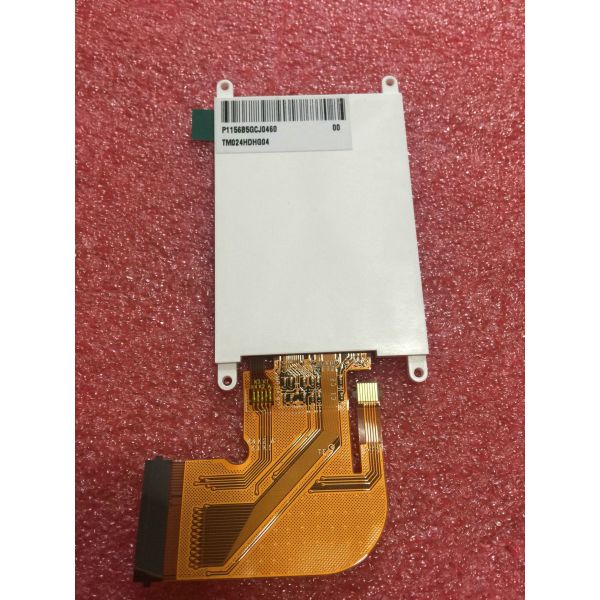

TM024HDH36 TIANMA 2.4" 240(RGB)×320 220 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : TIANMA

Model Number : TM024HDH36

Certification : ISO9001

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 3000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TM024HDH36

BRAND : TIANMA

SIZE : 2.4 inch

RESOLUTION : 240(RGB)×320, QVGA, 166PPI

BRIGHTNESS : 220 cd/m² (Typ.

Lamp Type : WLED

SIGNAL LNTERFACE : LVDS

Viewing Angle : 70/70/70/60 (Typ.)(CR≥10

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

TIANMA TM024HDH36 Application Details

Basic Information : Brand Model TM024HDH36
Type LCM a-Si TFT-LCD Used For
Screen Size 2.4" Alias -
Environment : Storage Temp. -30 ~~ 80 °C Operating Temp. -20 ~~ 70 °C
RoHS Vibration -
Typical Features :


Remarks : CPU 8/9/16/18 bits; 3 in 1 FPC; Down side FPC (13.2mm length)

TIANMA TM024HDH36 Mechanical Details

Pixel Features : Resolution 240(RGB)×320, QVGA Dot Pitch(mm) 0.051×0.153 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.153×0.153 (H×V) [166PPI]
Mechanical Size : Active Area(mm) 36.72(H) × 48.96(V) Bezel Area(mm) 37.72(H) × 49.96(V)
Outline Dim.(mm) 42.72(H) × 60.26(V) Depth(mm) 2.55±0.1
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 3:4 (H:V) Orientation Portrait type
Other Spec : Weight 11.8g Treatment Clear, Hard coating (3H)

TIANMA TM024HDH36 Optical Details

Basic Information : Luminance(cd/m²) 220 (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive)
Viewing Angle 70/70/70/60 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock Response(ms) 20 (Typ.)(Tr+Td)
Color Performance : White Coordinate X:0.289; Y:0.315 Display Colors 262K
Color Temperature 8213K White Uniformity 1.25 (Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 54% sRGB 75% coverage
Adobe RGB 56% coverage DCI-P3 56% coverage
Rec.2020 40% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM024HDH36 Electronics Details

Frame Rate : 60Hz
Reverse Scan : No
Driver IC : Built-in HX8347-G

TIANMA TM024HDH36 Interface Details

Signal Electrical : Voltage Supply (1.8/2.8)/2.8V (Typ.)(VDD/VCI) Current Supply -
Consumption 21.636mW (Typ.)
Signal Type : CPU Signal Voltage -
Interface Features : Position - Type FPC
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
1 pcs 39 pins 0.7 mm

TIANMA TM024HDH36 Backlight Details

Backlight Features: Shape Parallel Type WLED Position Edge light type
Replacement - Quantity 1S4P Life Time 20K(Typ.) (Hours)
Lamp Electrical : Voltage Supply 3.2V (Typ.) Current Supply 15mA (Typ.)
Consumption 192mW (Typ.)
Interface Features : Position - Type Included in panel signal interface
Backlight Driver : No

TIANMA TM024HDH36 Packing Details

Package Box : Quantity Weight Box Size
546 pcs / box 12.95 Kgs 544×365×250 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TM024HDH36 TIANMA 2.4" 240(RGB)×320 220 cd/m² INDUSTRIAL LCD DISPLAYTM024HDH36 TIANMA 2.4" 240(RGB)×320 220 cd/m² INDUSTRIAL LCD DISPLAY
