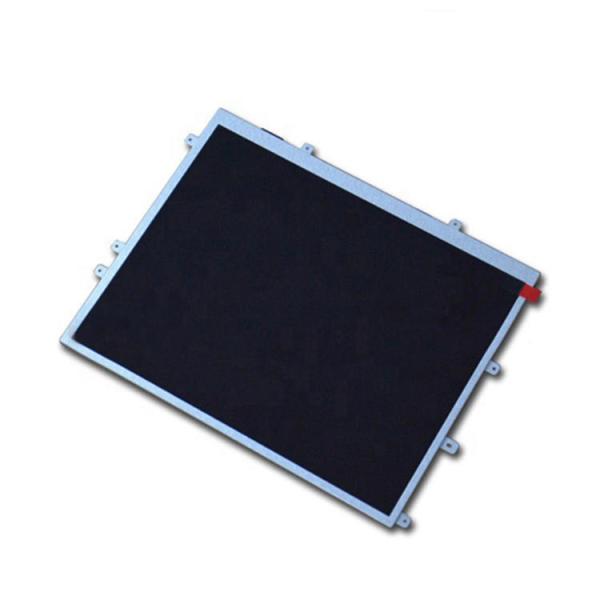

TM097TDHG04 TIANMA 9.7" 1024(RGB)×768 350 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : TIANMA

Model Number : TM097TDHG04

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Supply Ability : 3000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TM097TDHG04

BRAND : TIANMA

SIZE : 9.7INCH

RESOLUTION : 1024(RGB)×768 [XGA] 132PPI

BRIGHTNESS : 350 cd/m² (Typ.)

Lamp Type : WLED

SIGNAL LNTERFACE : LVDS

Viewing Angle : 70/70/70/60 (Typ.)(CR≥10

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

TIANMA TM097TDHG04 Application Details

Basic Info : Panel Brand Panel Model TM097TDHG04
Diagonal Size 9.7" Application


Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. -20 ~ 70 °C Storage Temp. -30 ~ 80 °C
RoHS State Vibration Rating -
Specific Features :

TIANMA TM097TDHG04 Mechanical Details

Pixel Features : Pixel Format 1024(RGB)×768 [XGA] Dot Pitch 0.064×0.192 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.192×0.192 mm (H×V) [132PPI]
Mechanical Size : Display Area 196.608×147.456 mm (H×V) Bezel Area 200.91×152.27 mm (H×V)
Outline Dim. 210.21×166.3 mm (H×V) Outline Depth 3.28/5.85 (Typ./Max.) mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 4:3 (H:V) Shape Style
Holes & Brackets : Face mounting holes (6 pcs) on left, right slugs
Other Features : Weight 200g (Typ.) Surface Clear

TIANMA TM097TDHG04 Optical Details

Basic Information : Brightness 350 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive)
Viewing Angle 70/70/70/60 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive
Viewing Direction 12 o'clock Response Time 20 (Typ.)(Tr+Td) (ms)
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Color Numbers 262K (6-bit)
Color Temperature 6485K White Uniformity 1.33 (Typ.)(9 points)
1931 Color Gamlt : NTSC Ratio 50% sRGB 71% coverage
Adobe RGB 53% coverage DCI-P3 52% coverage
Rec.2020 38% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM097TDHG04 Electronics Details

Frame Frequency : 60Hz
Reverse Scan : No
Power Consumption : 3.2W (Typ.)
Time Controller (T-CON) : Embedded T-CON

TIANMA TM097TDHG04 Backlight Details

Back-light Features: Lamp Shape 6 strings Lamp Type WLED Life Time 30K(Typ.) (Hours)
Replacement - Amount 6S6P Position Edge light type
Lamp Electrical : Voltage Input 19.2V (Typ.) Current Input 20mA (Typ.)
Consumption 2.3W (Typ.)
Interface Features : Type Included in panel signal interface Position - Lamp Driver No

TIANMA TM097TDHG04 Interface Details

Signal Systerm : LVDS (1 ch, 6-bit) Logic Voltage -
Signal Electrical : Voltage Input 3.3V (Typ.) Current Input 271mA (Typ.)
Consumption 894.3mW (Typ.)
Interface Features : Type Connector Position -
Connector Detail : Brand Model Pin Pitch Pins Amount Configuration
I-PEX 20474-030E-11 0.4 mm 30 pins 1 pcs

TIANMA TM097TDHG04 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
60 pcs / box 19.27 Kgs 565×483×312 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
