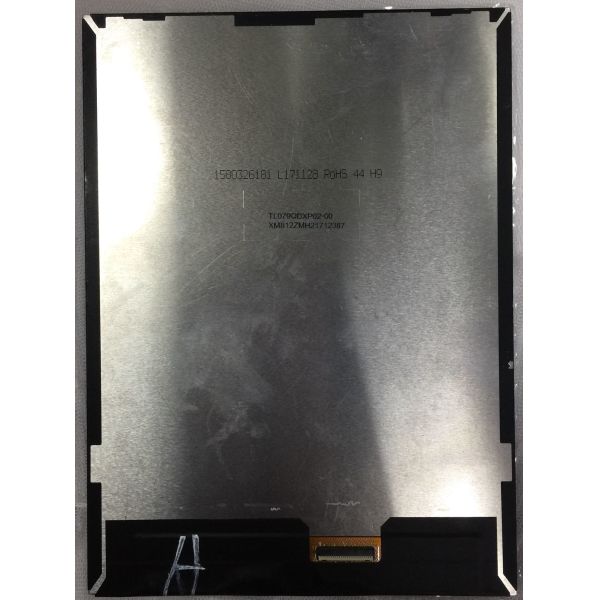

TL079QDXP02 TIANMA 7.9 inch 1536(RGB)×2048 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

TL079QDXP02 TIANMA 7.9 inch 1536(RGB)×2048 400 cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2

Brand Name : TIANMA

Model Number : TL079QDXP02

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 5000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TL079QDXP02

BRAND : TIANMA

SIZE : 7.9INCH

RESOLUTION : 1536(RGB)×2048, 325PPI

BRIGHTNESS : 400 cd/m² (Typ.)

Viewing Angle : 88/88/88/88 (Typ.)(CR≥10

TEMPERATURE RANGE : Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C

Lamp Type : WLED

SIGNAL LNTERFACE : LVDS

Contact Now

TIANMA TL079QDXP02 Application Features

Basic Information : Manufacturer Panel Model Panel Type Alias
TL079QDXP02 LTPS TFT-LCD , LCM -
Environment : RoHS State Operating Temp. Storage Temp. Vibration Level
-20 ~ 60 °C -30 ~ 70 °C -
Used For :
Specific Features :



TIANMA TL079QDXP02 Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
400 (Typ.) 88/88/88/88 (Typ.)(CR≥10) 25 (Typ.)(Tr+Td)
Best View on Display Mode Contrast Ratio
Symmetry SFT, Normally Black, Transmissive 1000 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6485K 16.7M (8-bit) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
71% 100% 74%
DCI-P3 Coverage Rec.2020 Coverage Remarks
74% 53% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.25 (Max.)(9 points)

TIANMA TL079QDXP02 Mechanical Features

Panel Size : 7.9"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
1536(RGB)×2048 RGB Vertical Stripe 0.078×0.078 [325PPI] 0.026×0.078
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
119.808(H) × 159.744(V) - 125.55(H) × 170.95(V) 3.38 (Typ.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Portrait type 3:4 (H:V)
Other Detail : Weight Panel Cover Treatment
73.0 (Typ.) - Hard coating (3H)

TIANMA TL079QDXP02 Electronics Features

Reverse Scan : No
Vertical Frequency : 60Hz
Driver IC : COG Suggest R63319

IANMA TL079QDXP02 Backlight Features

Lamp Features: Type Position Quantity Shape Life(Hours) Lamp Exchange
WLED Edge light type 6S4P 4 strings - -
WLED Electrical : Voltage Supply Current Supply Power
17.1V (Typ.) 19/19.5mA (Typ./Max.) 1.4W (Max.)
Interface Features : Position Backlight Driver Type
- No Included in panel signal interface

TIANMA TL079QDXP02 Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
1.8/5.4/-5.4V (Typ.)(IOVCC/VSP/VSN) - -
Interface Features : Position Signal Type
- MIPI (2 ch, 4 data lanes) Connector
Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
Panasonic AYF335165 0.3 mm 51 pins 1 pcs

TIANMA TL079QDXP02 Packing Features

Package Box : Quantity Weight Box Size
30 pcs / box - 544×365×250 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
